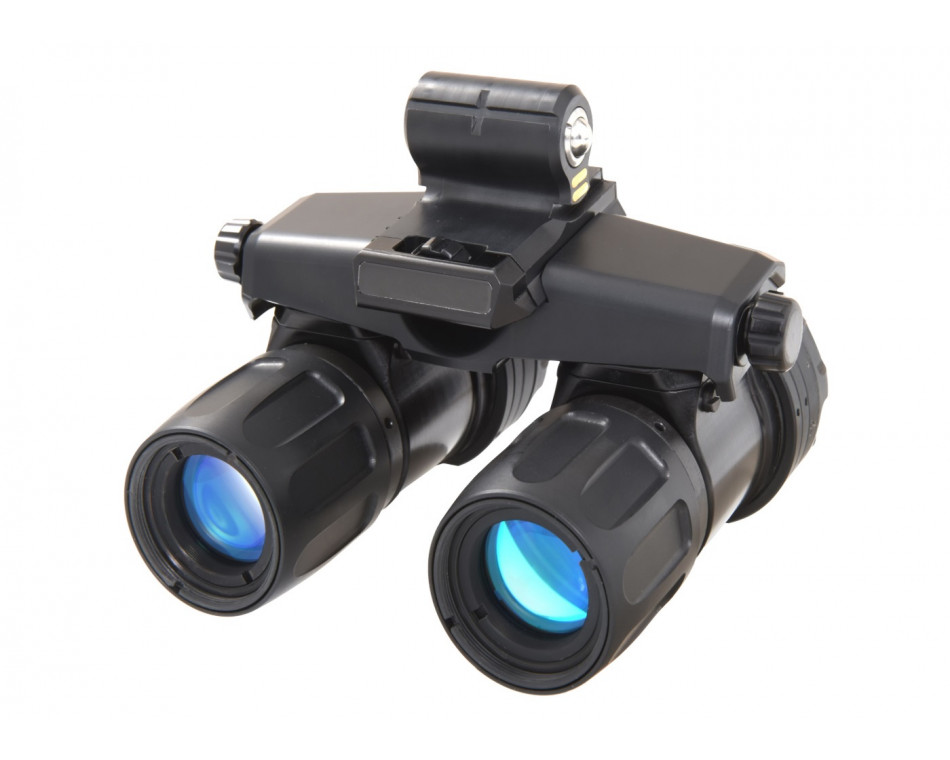

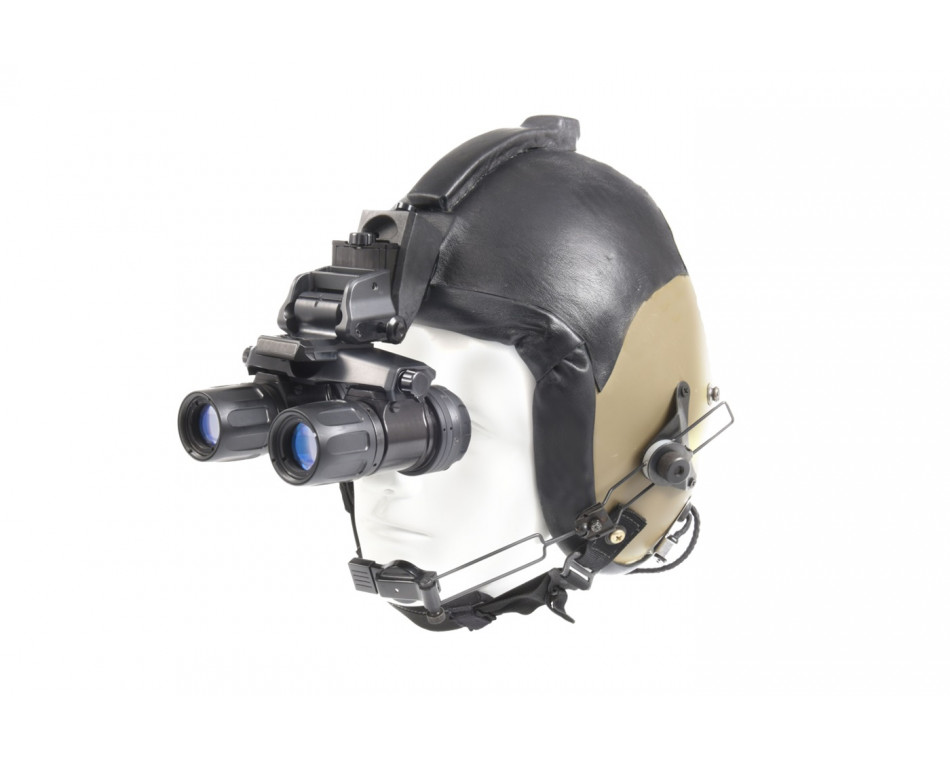

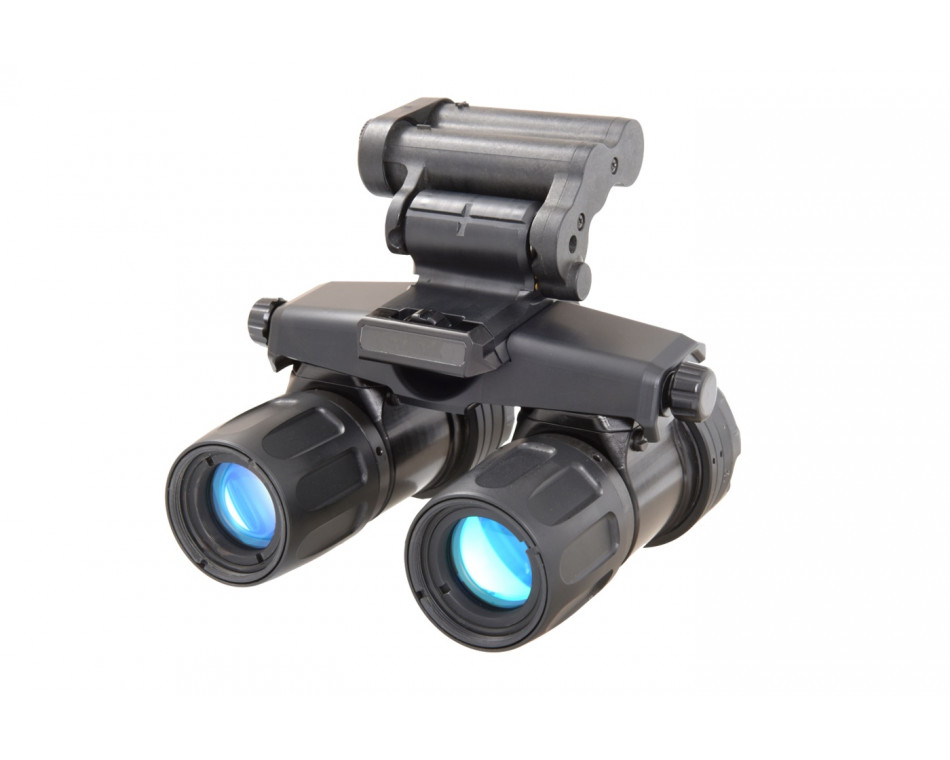

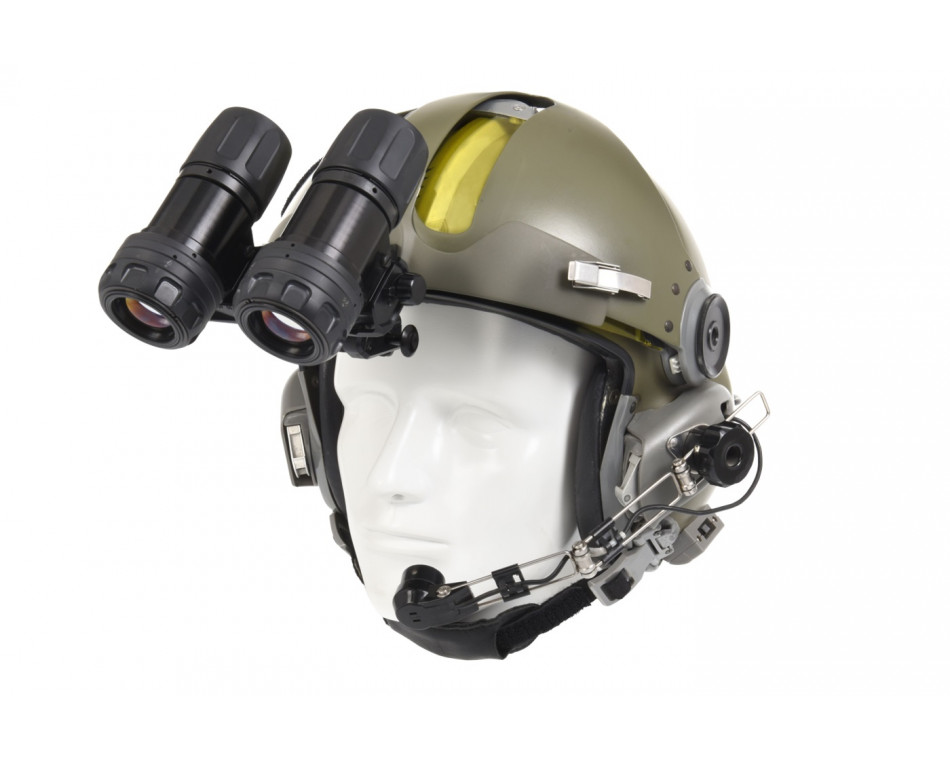

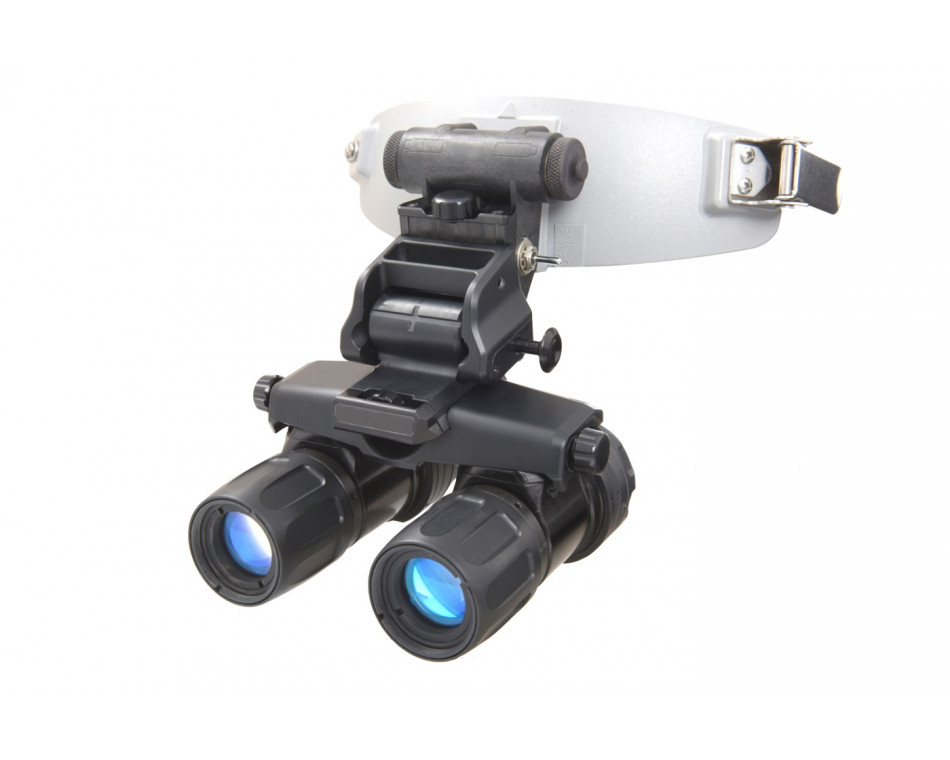

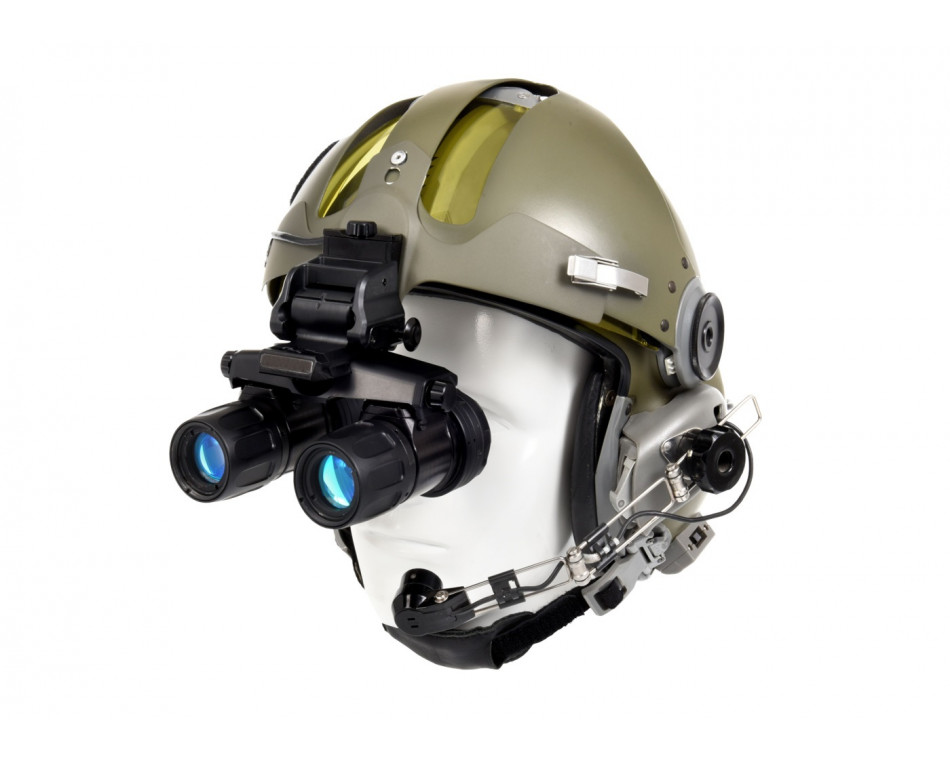

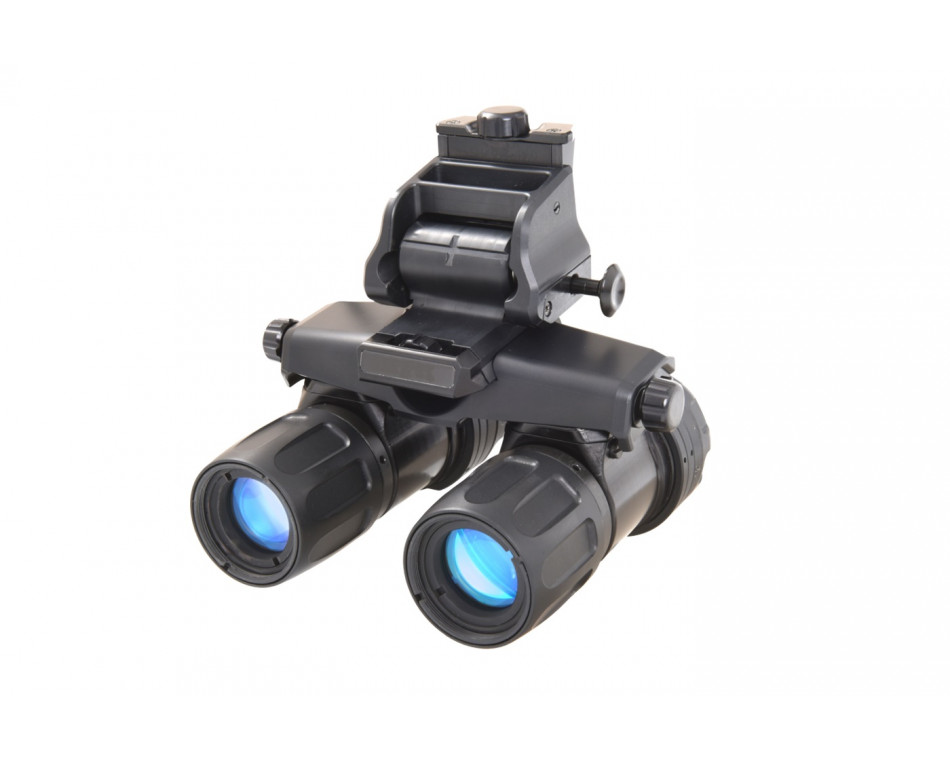

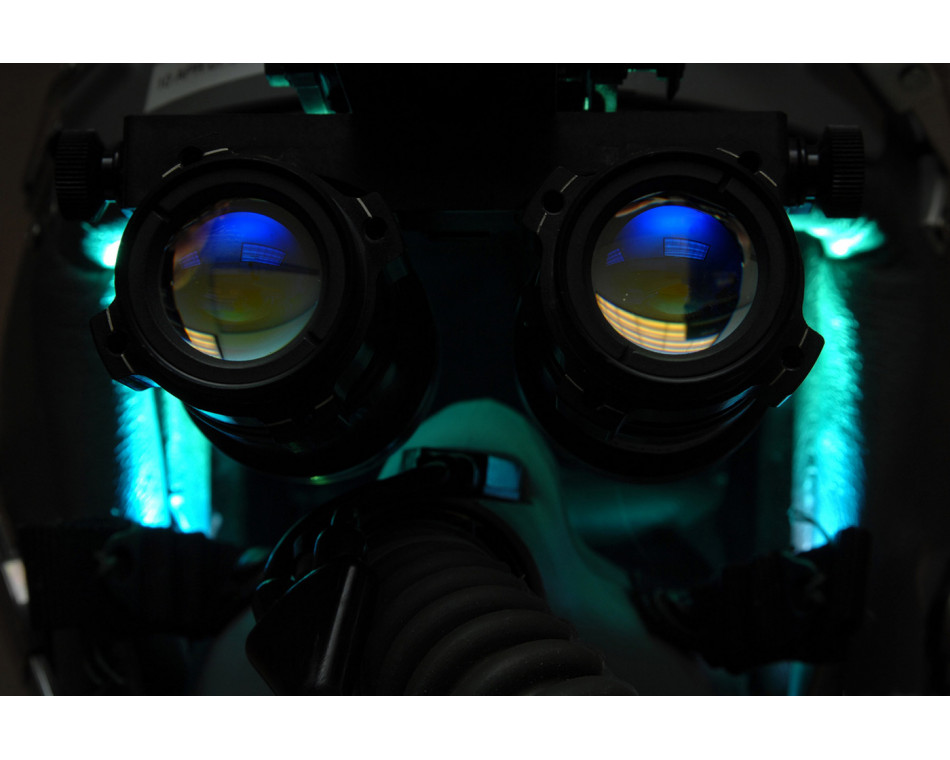

The A-9Apache Airborne Night Vision System is a variant of the AN/AVS-6(v)/9 Series ANVIS Goggle, which is a standard field production of the U.S. Army/Navi. AGM Global Vision takes the system to the next level by offering the Apache A-9 with standard image intensifier tubes with green and high-contrast white phosphor. The Apache A-9 features a class A or B filter coated lens and has a minimum 40 degree viewing angle. Wide 27mm eyepieces with vision can be regulated from +2 to -6 dioptres for most adjustment lenses. Additionally, the Apache A-9 holds interdental spaces from 51 to 72 mm and offers tilt adjustment of more than 10° to compensate for a wide variety of helmet positions during operation.
Field of View
52mm – 72mm
Convergence: 1.0° Dipvergence: 0.33° Tilt Adjustment: 10°
AA 1.5VDC / 80 hours battery pack load
25cm to infinity
-6 to +2 dpt
Binocular: 500g Mount: 150g
Apache A-9 Unit Assembly, Helmet Mount Assembly, Soft Carrying Case, Counterweight, 4 each AA Batteries, Battery Pack Assembly, Neck Cord, Lens Tissue, Screwdriver, Manual
