AGM NVG-40 3AL1

Part #14NV4123453111
0 reviews | Write a review
Part #14NV4123453111
0 reviews | Write a review

Characteristics
  • Image Intensifier Tube: Gen 3 Auto-Gated "Level 1"
  • Magnification: 1x
  • Lens System: 27 mm, F/1.3
  • FOV: 40°
Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.
Compare
Package Includes
  • NVG Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Demist Shield (2)
  • Sacrificial Window
  • Soft Carrying Case
  • Lens Tissue
  • Packing Box
  • Battery Adapter
  • User Manual
$6,297.00
Quick Order
Add to cart

Description And features

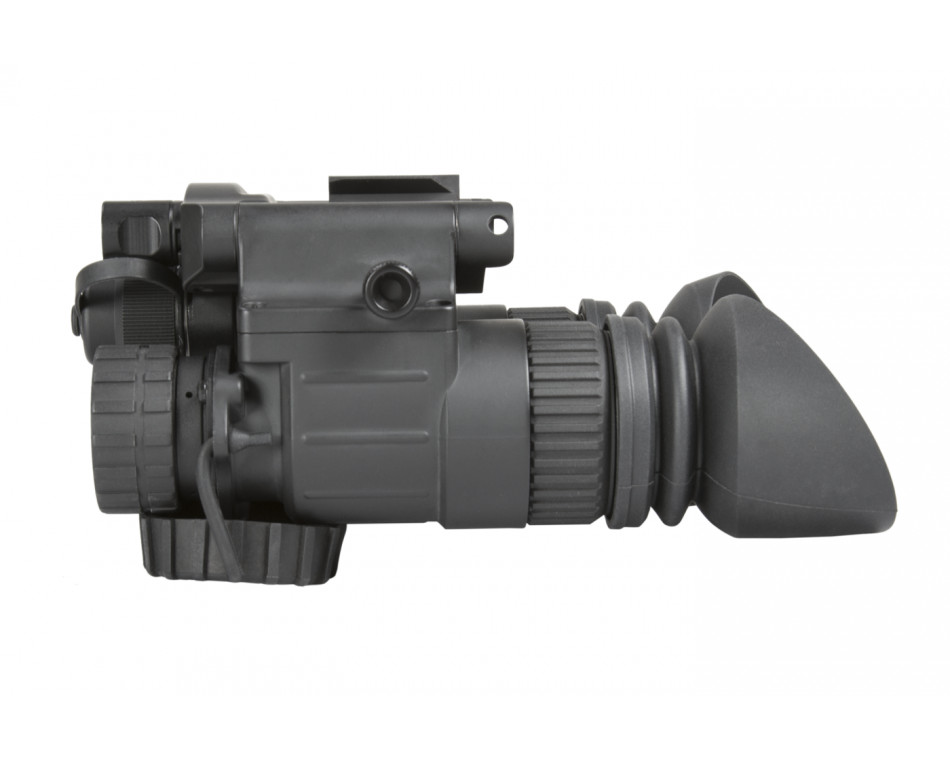

AGM NVG-40" is a two-channel night vision device. With a 40° viewing angle, it provides a large viewing area without necessarily moving the binoculars. NVG-40 uses state-of-the-art multi-coated lenses and is designed in a space-saving compact design. Running on a single alkaline AA or CR123A power pack, the NVG can last up to 20 hours. It also has a built-in infrared illuminator for dark sensing.

For use as a hands-free NVG, it can be fitted to many types of brackets such as AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18, or to mini-rail interface arms.

  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • Limited 3-year warranty

Specifications

Image Intensifier Tube

Gen 3 Auto-Gated "Level 1"

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3AL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.

Magnification

1x

Lens System

27 mm, F/1.3

FOV

40°

Focus Range

0.25 m to Infinity

Eye Relief

25 mm

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low Battery IR On Excessive Light Conditions

Infrared Illuminator

Yes; Two power levels

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +70°C (-58°F to +158°F)

Weight

645 g (1.42 lbs)

Overall Dimensions

115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)

Package Includes

Night Vision Goggles, NVG Interface Shoe, Bayonet/Horn Interface Shoe, Demist Shield (2), Sacrificial Window (2), Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
