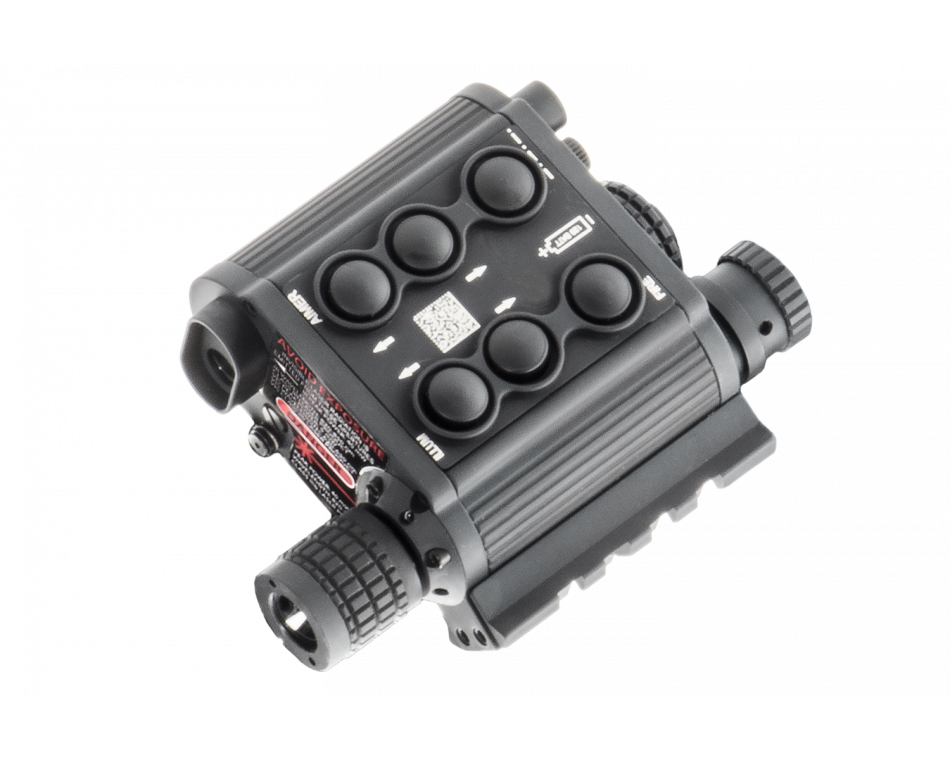

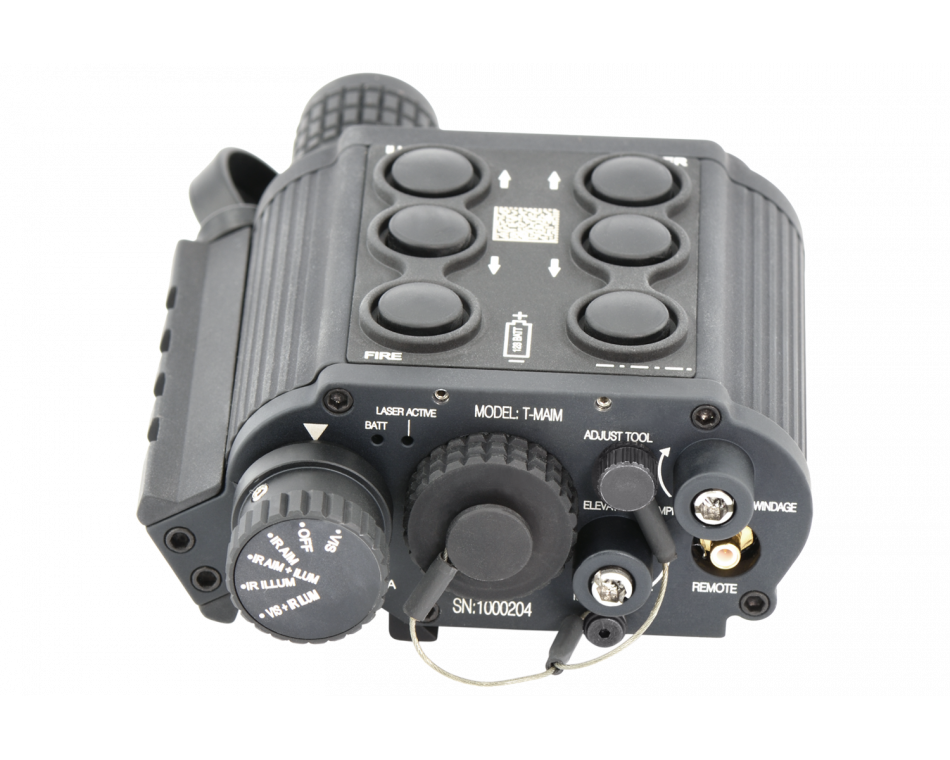

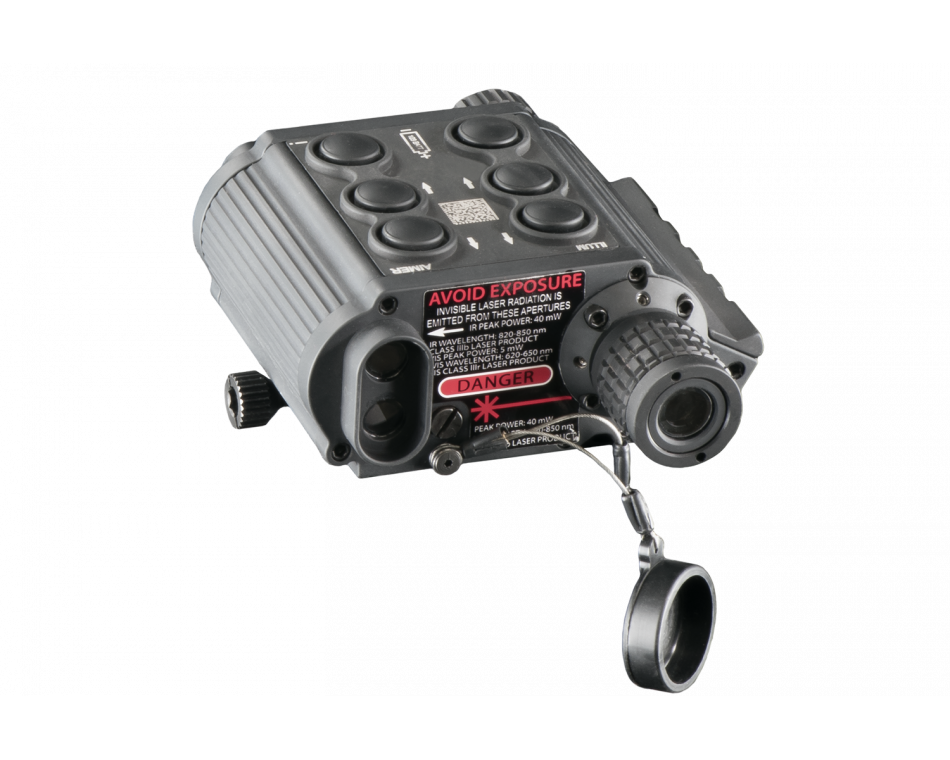

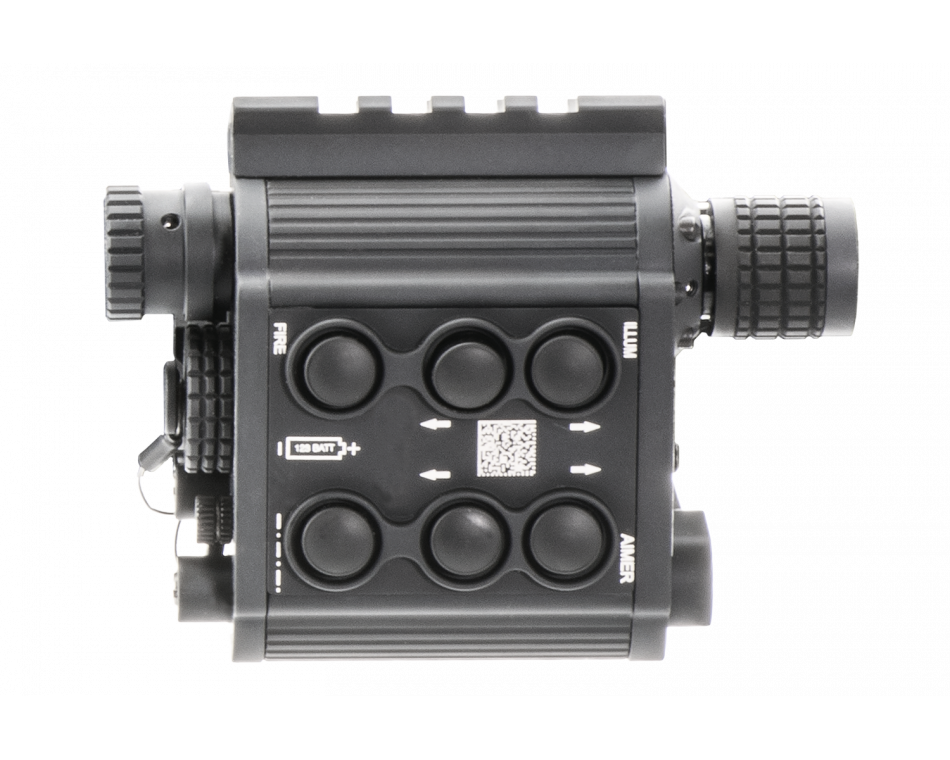

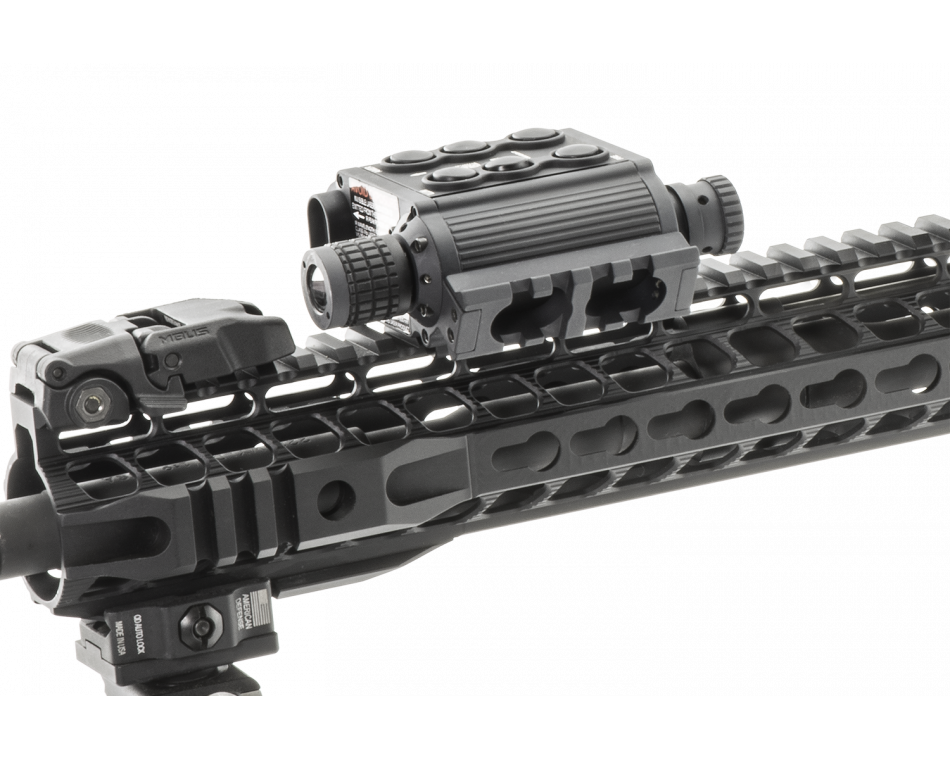

The TMAIM is a rugged and versatile Class 3b aiming solution that features a red visible laser, infrared (IR) laser, and adjustable focus IR illuminator. This device provides operators with the ability to identify and designate targets at short or long distances using visible and IR outputs, during unaided and Night Vision- assisted missions alike.
Built to perform for the most demanding users in the world’s harshest environments; the AGM TMAIM is the first choice for tactical aiming solutions.
Warning: California's Proposition 65
Divergence
IR LASER - 0.5 mRad VISIBLE LASER - 0.8 mRad IR ILLUMINATOR - 1-108 mRad
Class
IR LASER - IIIb (near IR) VISIBLE LASER - IIIr IR ILLUMINATOR - IIIb (near-IR)
Output power
IR LASER - 100 μW (Low) 25 mW (High) VISIBLE LASER - 4.0 mW IR ILLUMINATOR - 500 μW (Low) 25 mW (High)
Operating distance
IR LASER - > 200 m (Low) 2,000 m (High) VISIBLE LASER - > 25 m (in direct sunlight) IR ILLUMINATOR - > 100 m (Low) >2,000 m (High)
Wavelength
IR LASER - 820 nm – 850 nm VISIBLE LASER - 620 nm – 650 nm IR ILLUMINATOR - 820 nm – 850 nm
Battery life
>10 hours in near-IR Aim Mode
Operating Temperature
-51°C to 57°C
Storage Temperature
-57°C to 85°C
Waterproof
Up to 20 m for 1 hour
Weight
0.2 kg ( 0.44 lb )
Dimensions
105 × 81 × 43 mm ( 4.1 × 3.2 × 1.7 in )
Color (housing)
Black or Tan
Package Inludes
Aiming/Illumination Module, Remote Switch Black, Remote Switch Blue, Operation and Maintenance Manual, Soft Carrying Case
Select a row below to filter reviews.
Warning: California's Proposition 65
Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"
Magnification: 1x (3x and 5x optional)
Lens System: 27 mm; F/1.2
FOV: 40°
