Detector type: 12 μm VOx Uncooled Focal Plane Arrays
Refresh rate: 50 Hz
Resolution: 640 × 512
FOV: 12.5° × 10°
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

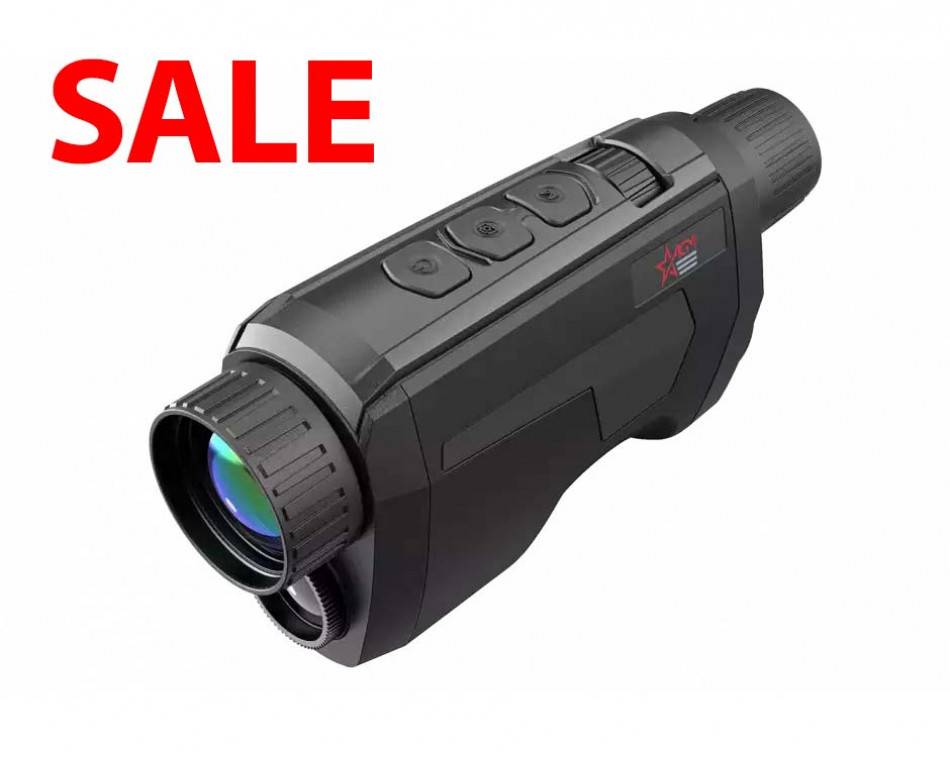

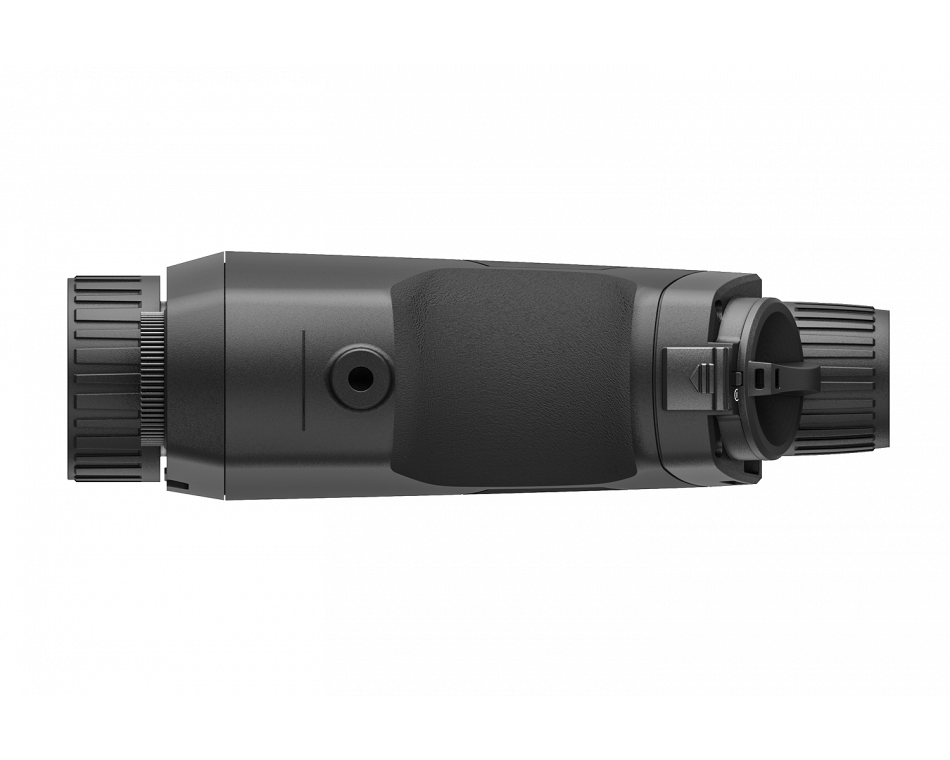

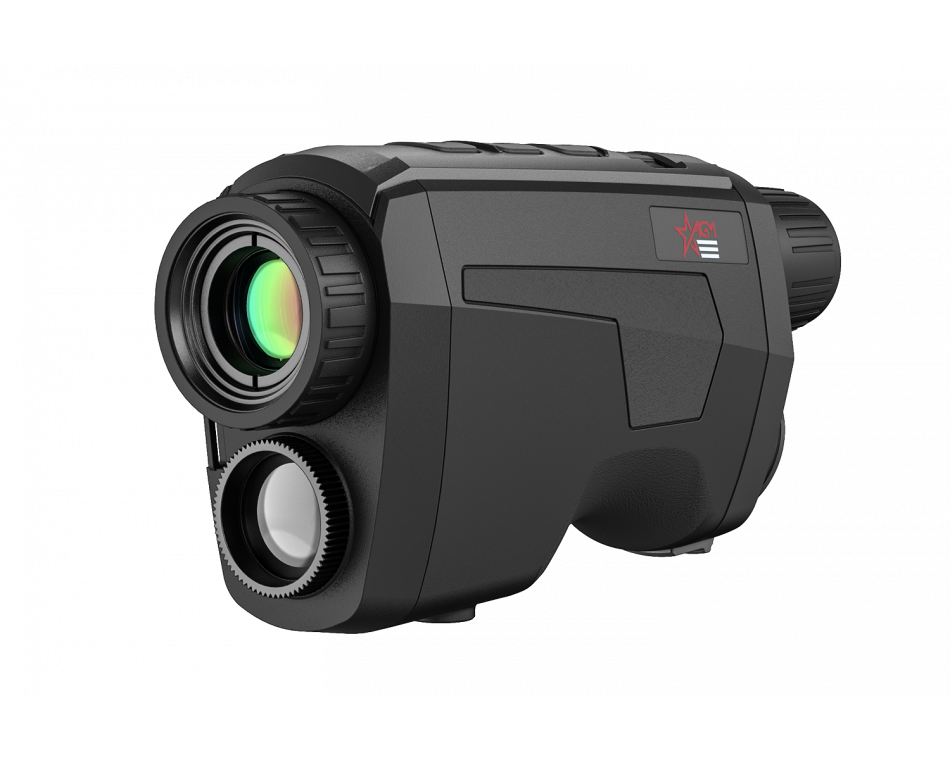

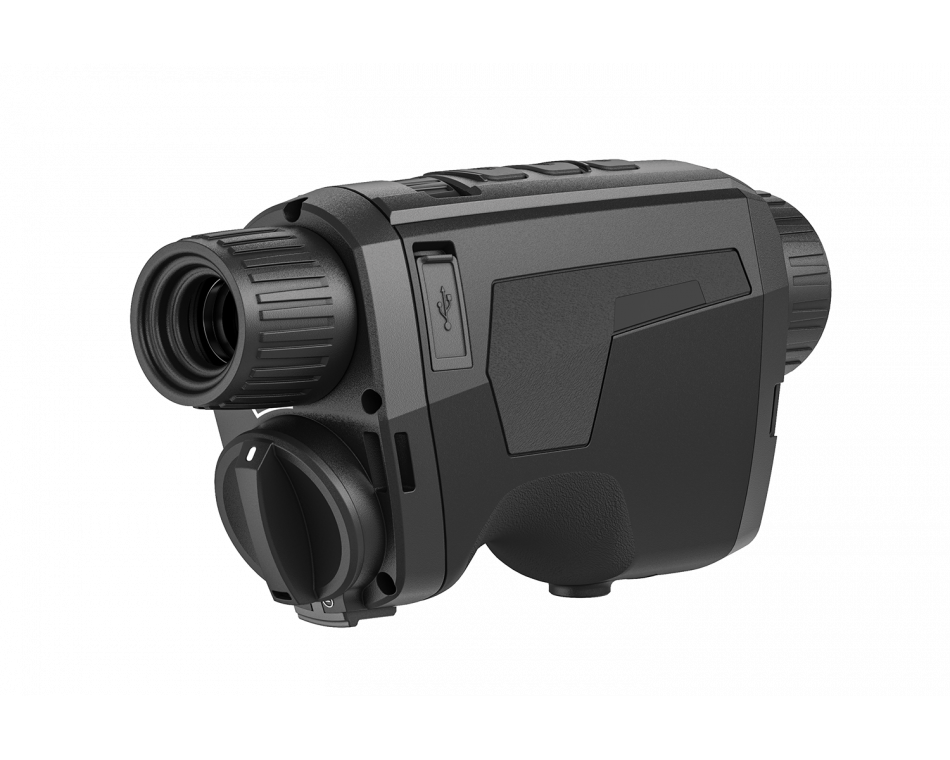

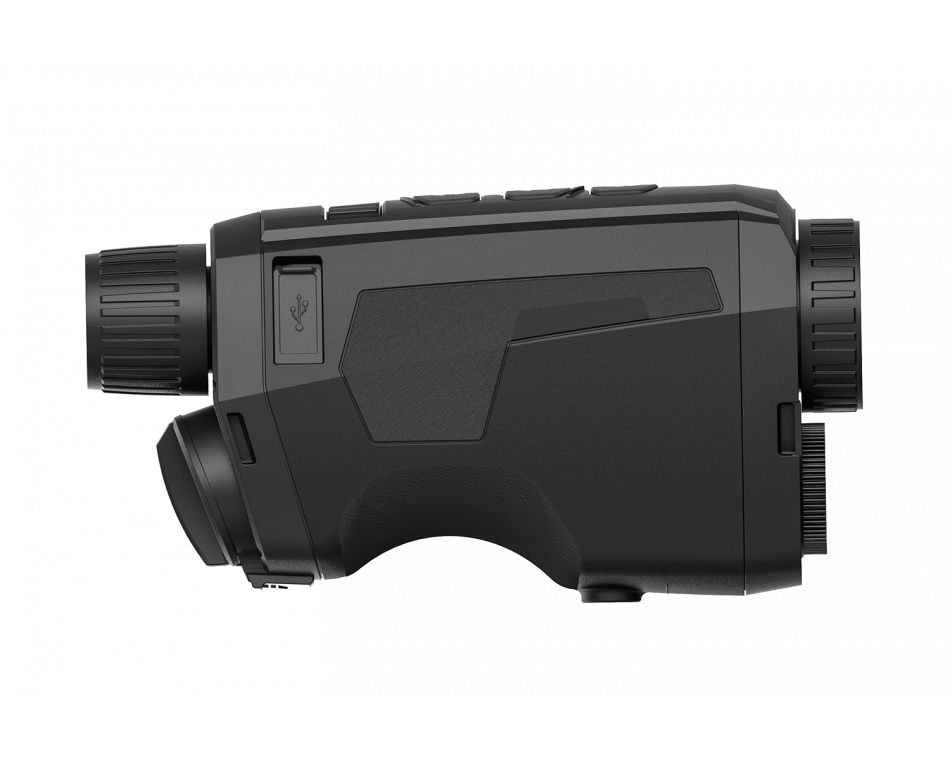

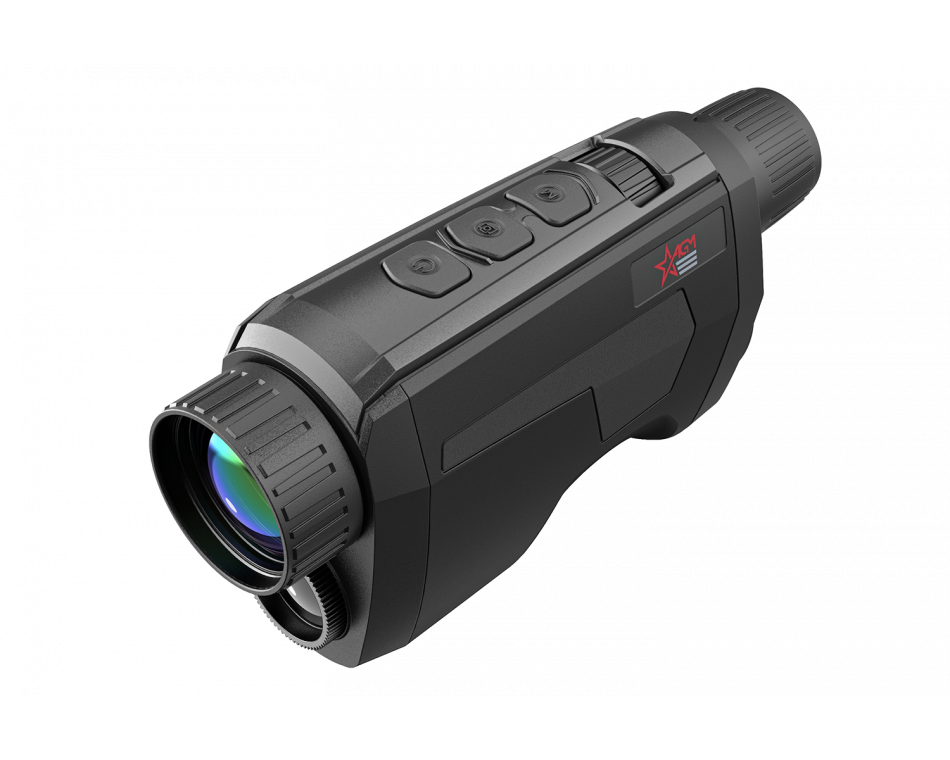

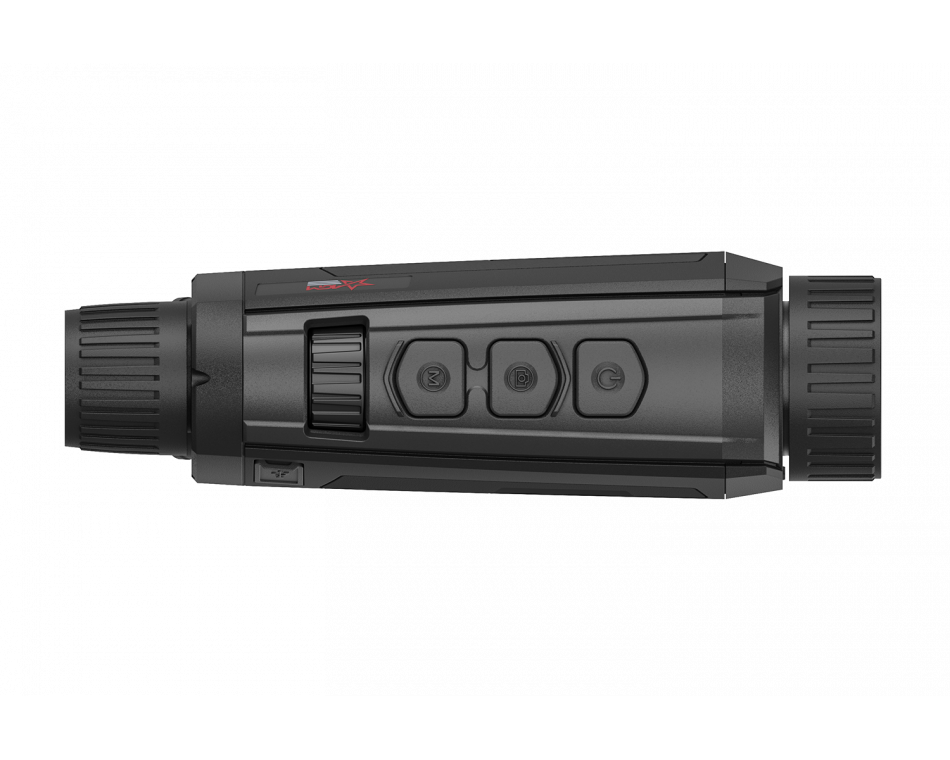

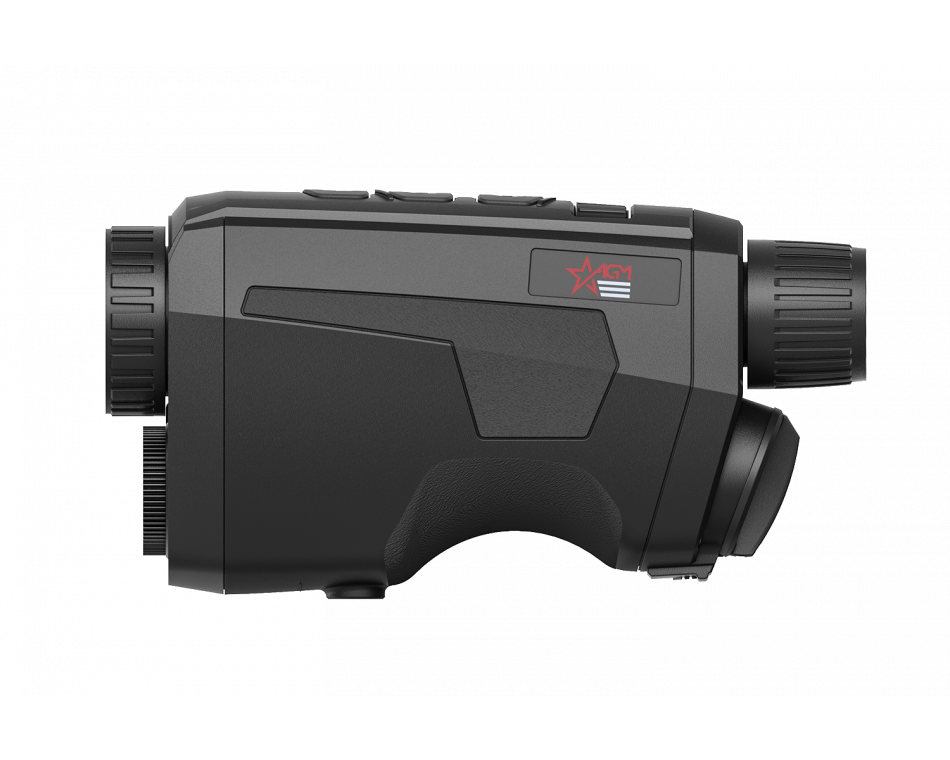

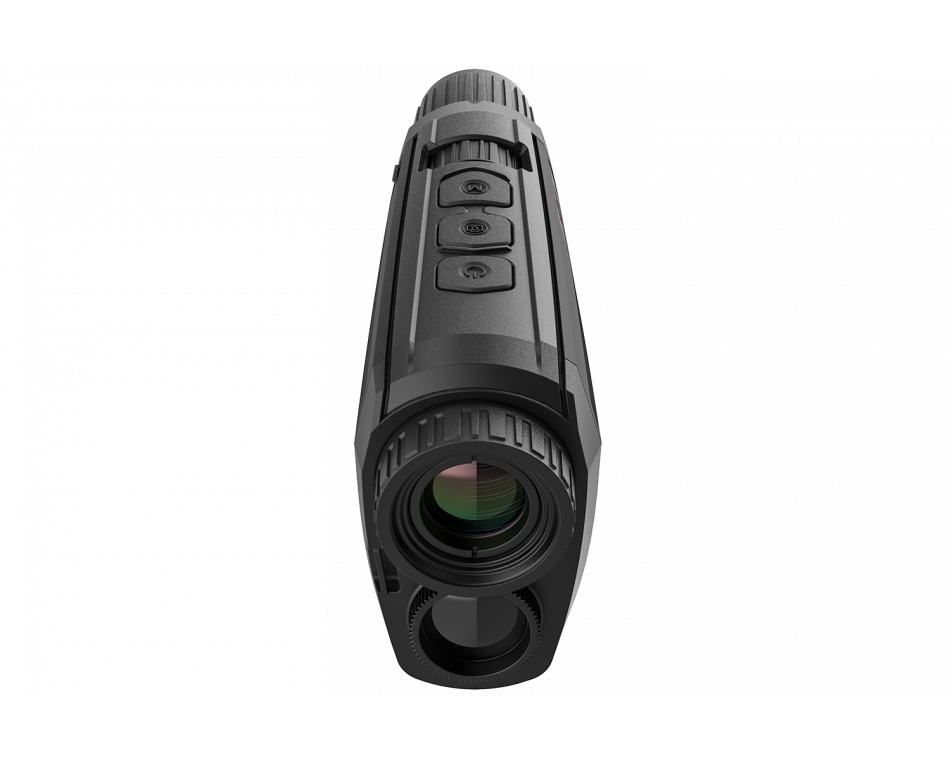

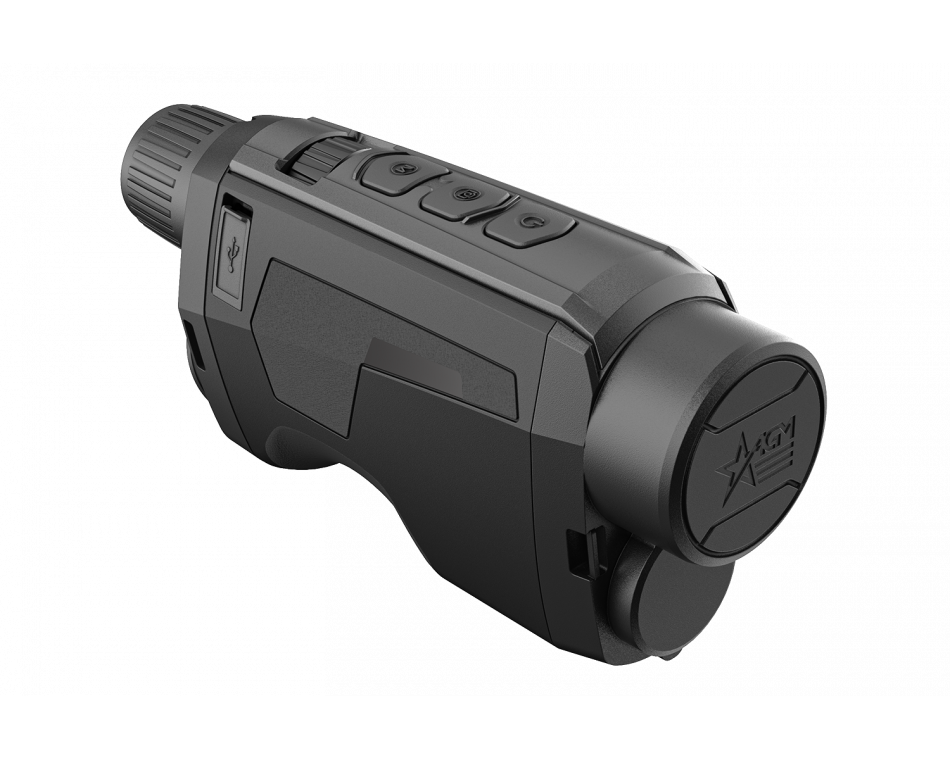

The AGM Fuzion Handheld Thermal & Optical Bi-spectrum Monocular is equipped with 12μm high sensitivity thermal detector, ultra-low light optical detector, 1024×768 OLED display and eyepiece with a large field of view. The device can quickly detect hiding objects even under extreme environments such as smoke, fog, rain, snow, etc. It can be widely applied to scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments.
The Fuzion’s user-friendly interface, comfortable and ergonomic operating controls makes adoption and application incredibly simple. The monocular offers three different variants of image view: thermal, visible light, and fusion that can be easily adapted depending on different environmental conditions. The Fuzion uses one 18650 rechargeable Lithium battery for up to 5-hours of operating time. In addition, an external power supply can be used to provide an increase in operating time.
Warning: California's Proposition 65
Wavelength
Optical Sensor Wavelength 400-1000 nm
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Image sensor
1/2” Progressive Scan CMOS, 1920×1080@25fps
Response Waveband
8 μm to 14 μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
640 × 512
Optical magnification
2x – 16x
Lens (focal length)
Optical Module Lens Focal Length - 22mm Thermal Lens Focal Length - 35mm
Field of view (H × X)
12.5° × 10°
Digital zoom
1x, 2x, 4x, 8x
Monitor
1024x768, 0.39 inch, OLED, 50Hz
Storage
Built-in 16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
One 18650 rechargeable battery (removable)
Battery Operating Time
Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display
Yes
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Weight
480 g (1.06 Ib)
Overall Dimensions
168 × 87 × 51 mm (6.6 × 3.4 × 2.0 in)
Protection Level
IP67 (Waterproof)
