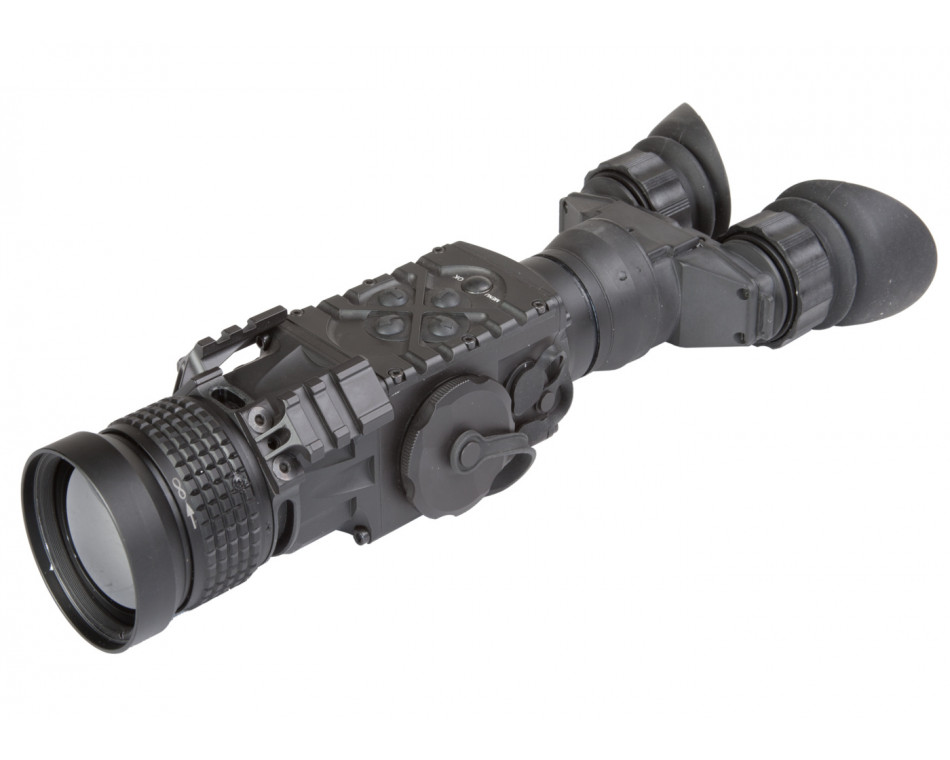

AGM COBRA TB50-640

Part #3093553006CO51
0 reviews | Write a review
Part #3093553006CO51
0 reviews | Write a review

Characteristics
  • Detector type: FLIR Tau 2 17µm Uncooled Microbolometer
  • Refresh rate: 30 Hz
  • Resolution: 640x512
Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.
Compare
Package Includes
  • Thermal imaging bi-ocular
  • Lens Cloth
  • Soft Carrying Case
  • User Manual
$6,297.00
Quick Order
Add to cart

Description And features

AGM Cobra is the newest and most advanced thermal imaging product on the market at present. Bi-ocular is constructed of premium aviation aluminum alloy, which makes the device both strong and lightweight. Thanks to its water resistance, the Cobra works perfectly in severe environments and even in harsh weather conditions. Cobra's convenient user friendly interface, convenient and ergonomically designed push buttons along with the cordless remotecontrol make implementing and using the device extremely simple. Based on the core of the FLIR TAU 2 VOx microbolometer, Cobra provides various picture selections: white "hot", black "hot", rainbow, and so on, that can be adapted to various ambient conditions with ease. This high-tech biocular can accept both two CR123A 3V lithium batteries and two CR123 rechargeable batteries with power from 3.0V to 3.7V. In plus, the exterior storage battery pack, which is attached via a regular micro-USB port, offers extra operating time.

  • Manually adjustable eyepiece and objective lens
  • FLIR Tau 2 17μm pitch thermal sensor
  • Dual eye viewing system for comfortable, extended viewing sessions
  • External power supply via micro USB
  • Lightweight and robust design
  • Easy to operate device
  • Tripod mountable/ Limited 3-Year Warranty
  • Real-time display
  • Multiple color palettes
  • Digital zoom: 1x, 2x, 4x, and 8x
  • Powered by two standard CR123A batteries
  • Waterproof
  • External Wi-Fi module via micro USB
  • Wireless remote control
  • Integral MIL-STD-1913 rails on unit for optional accessories

Specifications

Detector type

FLIR Tau 2 640x512

Refresh rate

30 Hz

Start up

3 seconds

Lens system

50 mm; F/1.0

Optical magnification

1.7×

Digital zoom

2×, 4×, 8×

Diopter adjustment range

-5 to +5 dpt

Focusing range

5 m to infinity

Display

(800x600)

Video output

PAL (768x574 pixels)/ NTSC (640x480 pixels)

Temperature imaging palettes

White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM

Interfacing

S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack)

Battery Type

Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2)

Battery Life (Operating)

Up to 4 hr (optional up to 12 hrs)

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Weight

0.9 kg (1.9 lbs)

Overall Dimensions

288 x 109 x 60 mm (11.3 x 4.2 x 2.3 in)

Package Inludes

Thermal imaging bi-ocular, Lens Cloth, Soft Carrying Case, User Manual
