AGM ANACONDA-MICRO TC50

Part #3093456006AM51
0 reviews | Write a review
Part #3093456006AM51
0 reviews | Write a review

Characteristics
  • Refresh rate: 50 Hz
  • Resolution: 384x288
  • FOV: 7.4° x 5.6°
Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.
Compare
Package Includes
  • Two Lithium CR123A batteries
$4,919.00 $4,719.00
Quick Order
Add to cart

Description And features

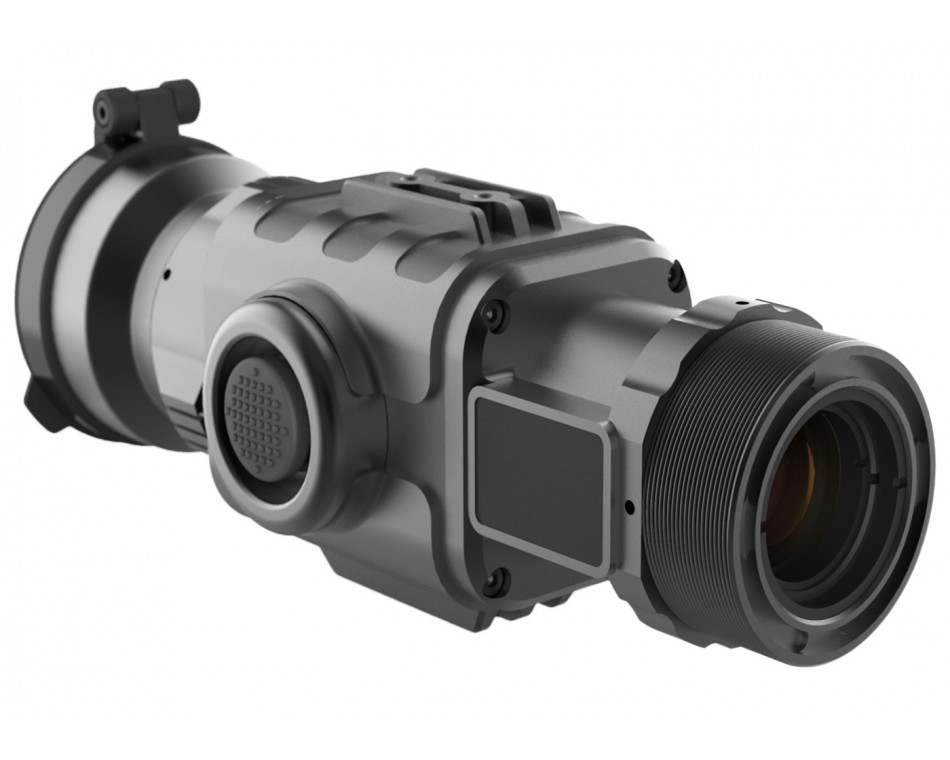

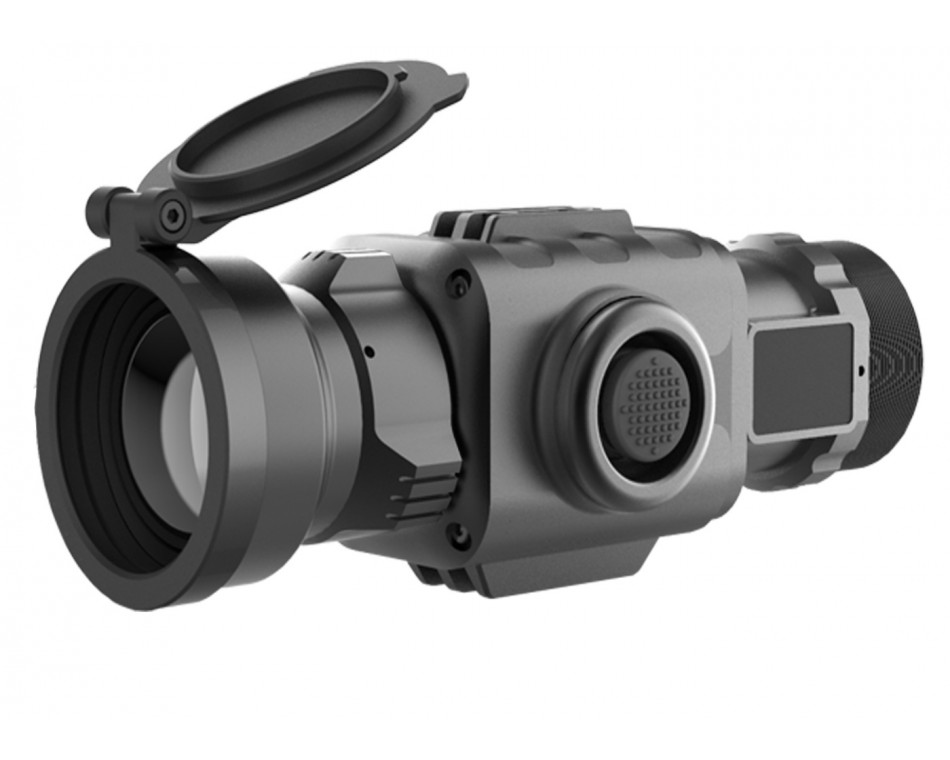

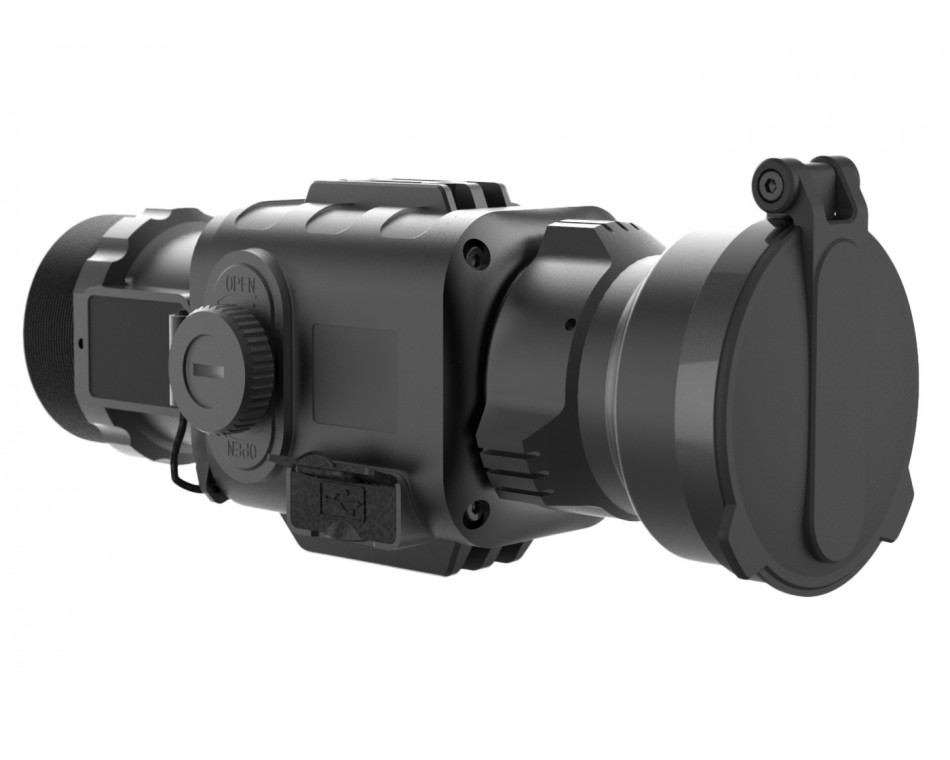

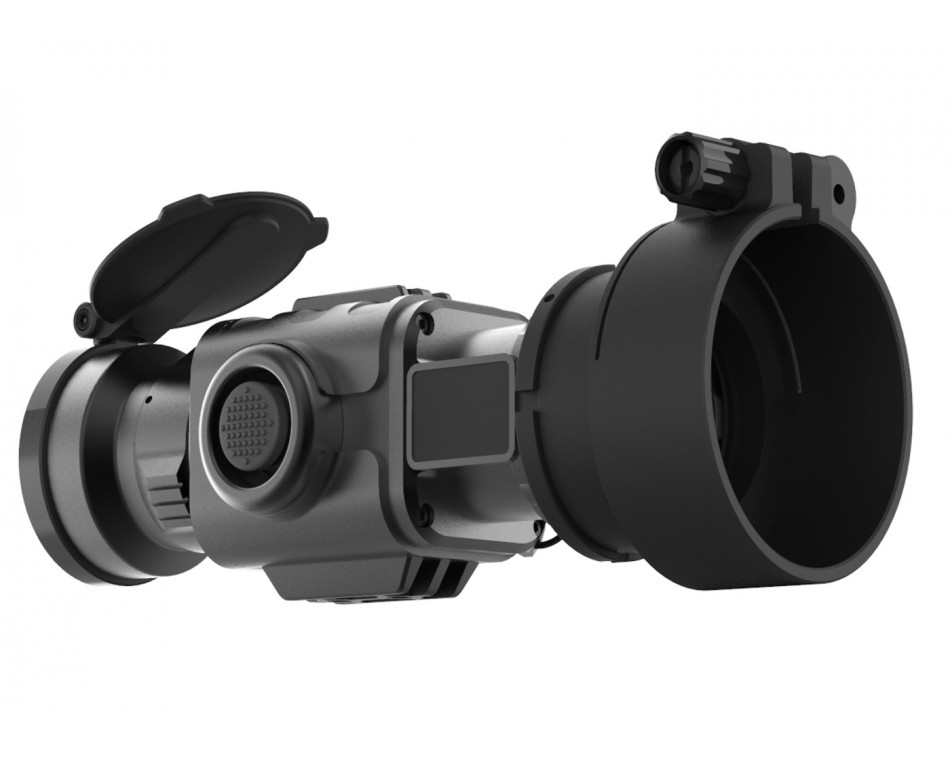

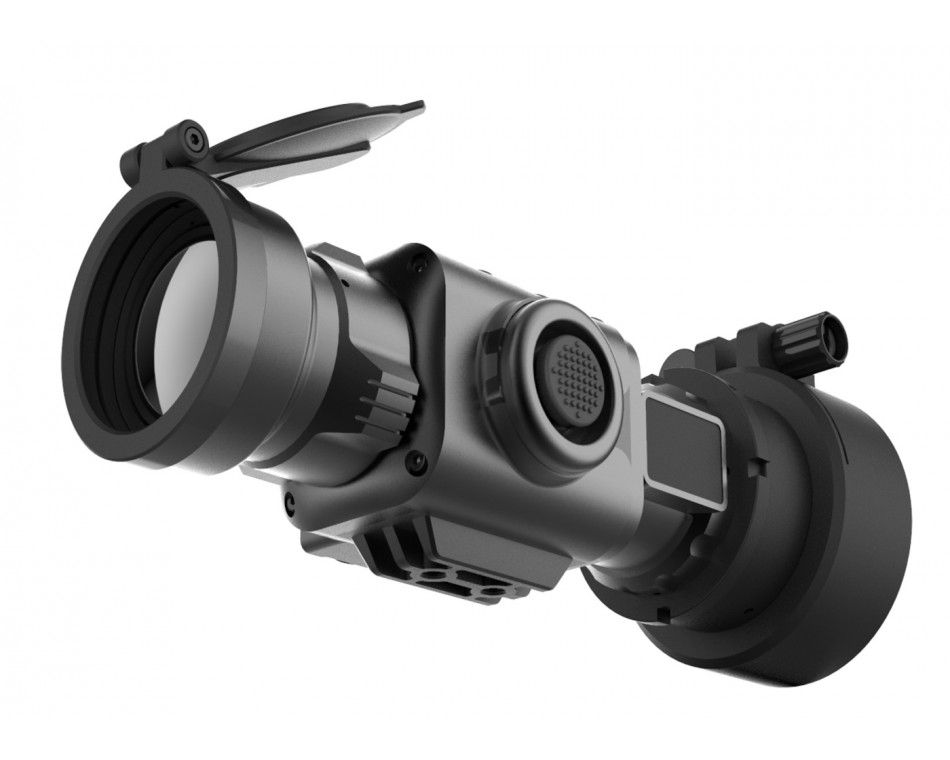

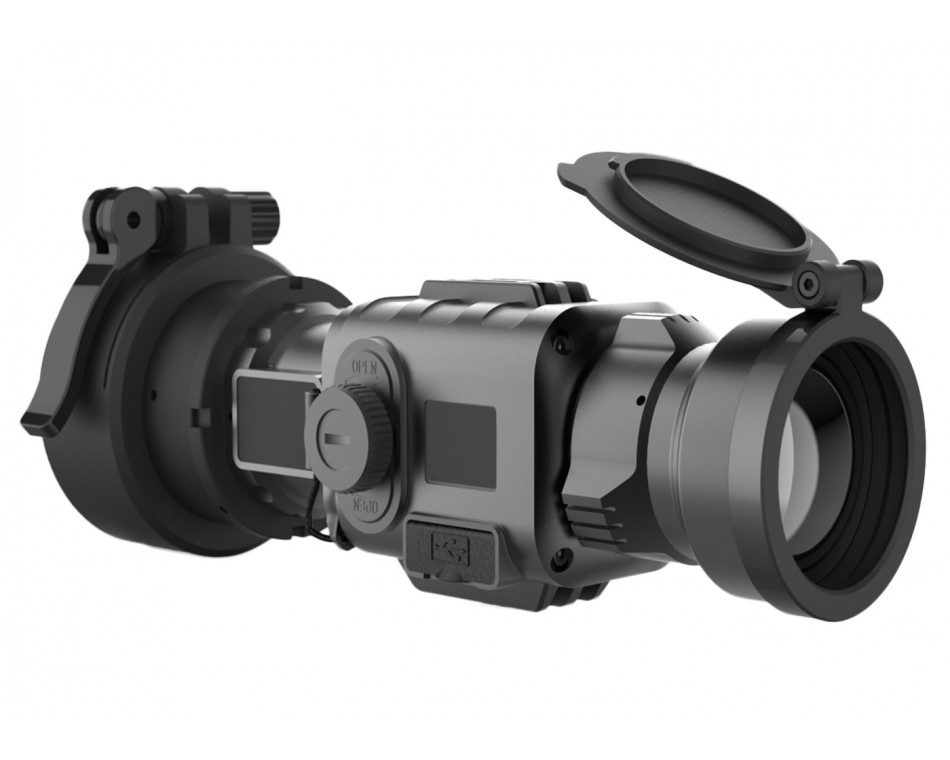

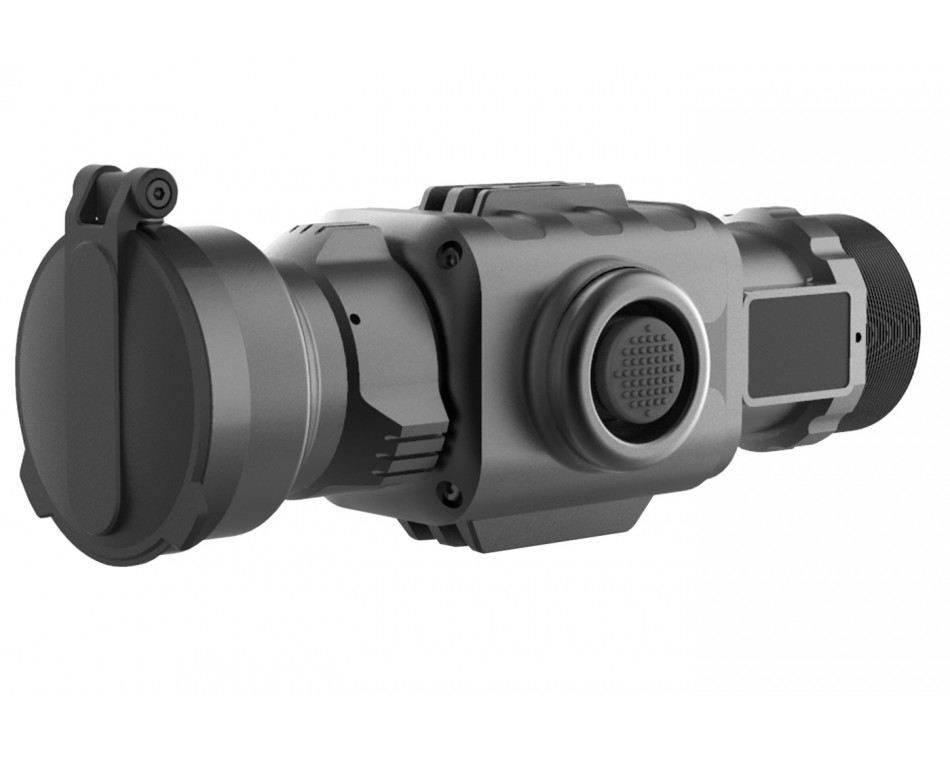

AGM Anaconda is a small clip-on system for thermal imaging cameras that enables you to fast turn your dayly vision into a thermal imaging tool with no extra skill. Anaconda can simply be fixed to the device with an 8x zoom for use over mid-range applications. The instrument is supplied with two CR123 batteries, giving up to 5 hours of uninterrupted power supply. An additional 5 V high capacity battery can increase the total running time to 44 hrs. The Anaconda may also be attached to an additional recorder for real-time video capture or an optional Wi-Fi module for use with your phone.

  • Waterproof, shockproof
  • High resolution OLED display
  • Powered by two standard CR123A batteries

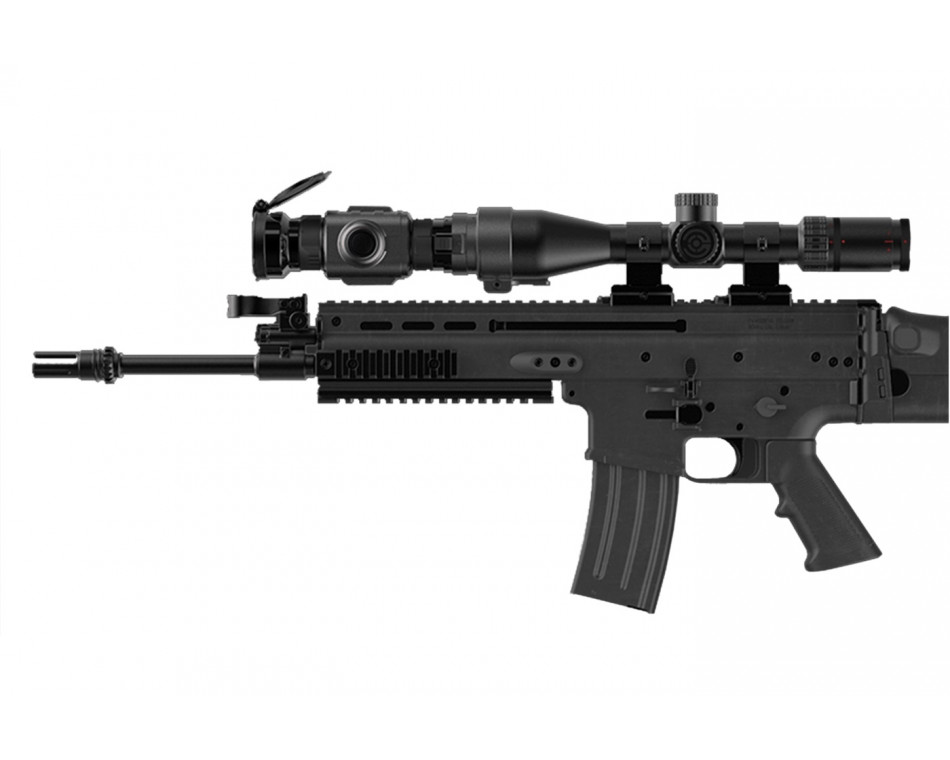

  • Mounts in front of any daytime scope, no re-zeroing is required
  • Limited 3-year warranty
  • Lightweight and compact design
  • Easy to operate control panel
  • Automatic or manual (silent) calibration
  • Video output for external monitor or recorder
  • Wi-Fi data transmission
  • Video/images recording via APP
  • Quick conversion of daytime optics into thermal imaging scope
  • Electronic accuracy correction
  • External power supply capability

Specifications

Storage Temperature Range

-40°C to +70°C (-40°F to +158°F)

Close-up range

5 m

Video / photo format

AVI / JPG

On-board memory

128MB (32 GB optional)

Degree of protection

IP67

Shock and vibration

1200 g/ms

Detector type

17μm, Uncooled, 50Hz

Resolution

384x288

Lens system

50 mm; F/1.1

Optical magnification

1x

Field of view (H × X)

7.4° x 5.6°

Digital zoom

2x, 4x

Diopter adjustment range

Eye relief

60 mm

Display

OLED (1024x768)

Record Video

Support video recording via APP

Capture Snapshot

Support snapshot capturing via APP

Battery Type

Two CR123

Wi-Fi

Yes

Battery Life (Operating)

Up to 5 hr

External power supply

5V USB

Power supply

3.6~7.2V

Operating Temperature Range

-25°C to +50°C (-4°F to +122°F)

Weight

0.43 kg (0.94 lbs)

Overall Dimensions

162 x 65 x 67 mm (6.3 × 2.8 × 2.6 in)
